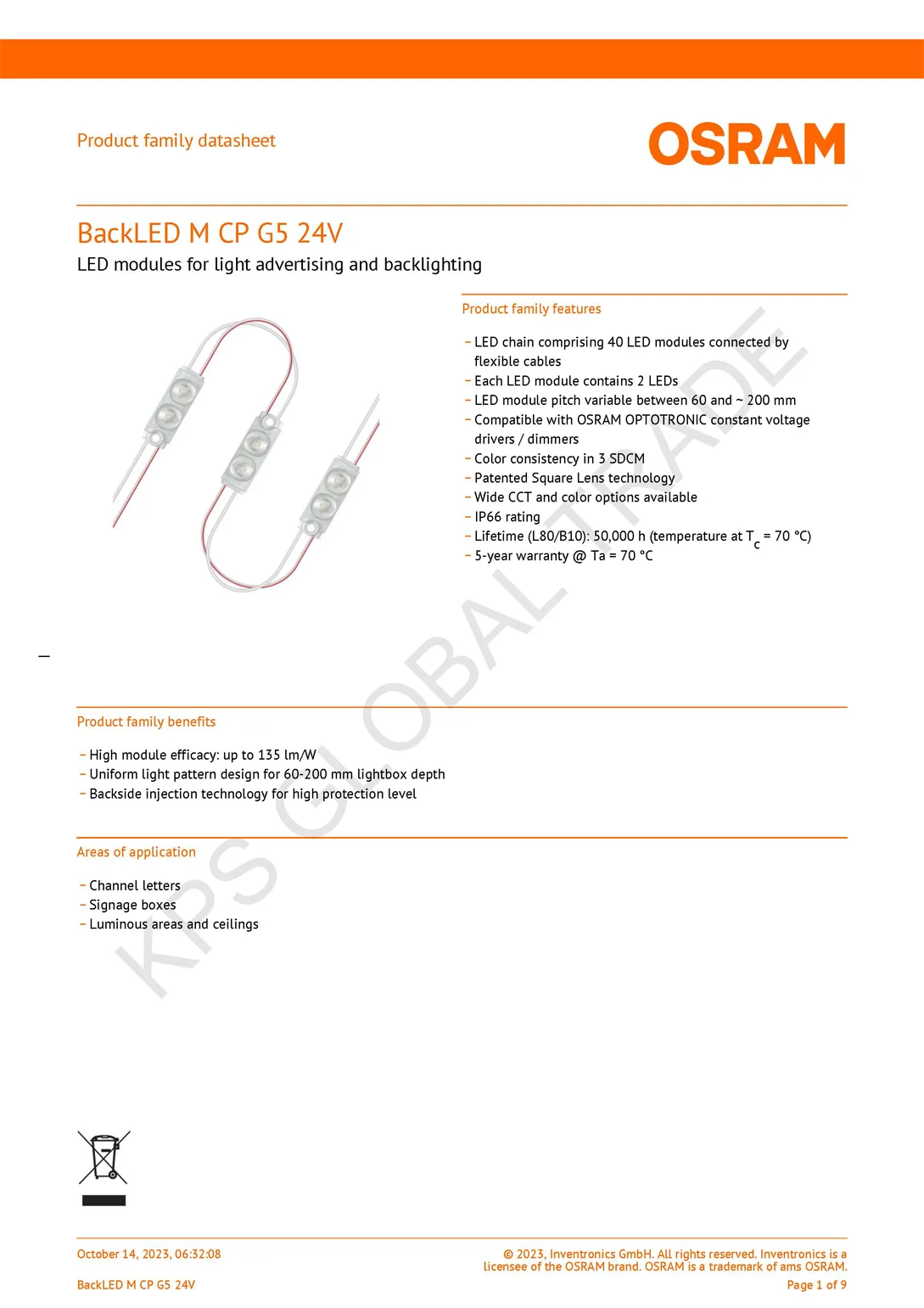

BackLED M CP G5 24V
LED modules for light advertising and backlighting
Product family features
- LED chain comprising 40 LED modules connected by
flexible cables - Each LED module contains 2 LEDs
- LED module pitch variable between 60 and ~200 mm
- Compatible with OSRAM OPTOTRONIC constant voltage
drivers / dimmers - Color consistency in 3 SDCM
- Patented Square Lens technology
- Wide CCT and color options available
-IP66 rating - Lifetime (L80/B10): 50,000 h (temperature at 70 “O
- 5-year warranty @ Ta = 70 C
Product family benefits - High module efficacy: up to 135 Im/W
-Uniform light pattern design for 60-200 mm lightbox depth
-Backside injection technology for high protection level.
Areas of application - Channel letters
- Signage boxes
- Luminous areas and ceilings
